Patient Chair:

Seamless PU lether

Spitting chair position

Emergency chair position

Luxury multi-function foot pedal

Luxury LED operation Light



Opearation tray:

Hanging hose tray

Full function control panel with 13buttons

Built-in X-ray film viewer

3-way syringe (cold)



Main side box:

Saliva ejector with high and low suction

Automatic cuspidor flush&water

supply with costant temperature

Purified water supply system



Assistand control:

Multi-function and control panel with 8buttons

3-way syringe (hot)

Strong and weak suction

Built-out type floor box

Standard type dentist stool



Technical Data:

Power supply	AC 220V/110V Frequency: 50Hz
Input power	800VA
Blown fuse specifications	Mains power supply: FR1-20 φ5x20 5A
Flux	≥50L/min
Max. Loading of the instrument tray	≤30N
Input air pressure	0.55~0.6MPaRelative humidity≤80%
Relative Humidity	≤80%
Environmental temperature	5~ 40°C

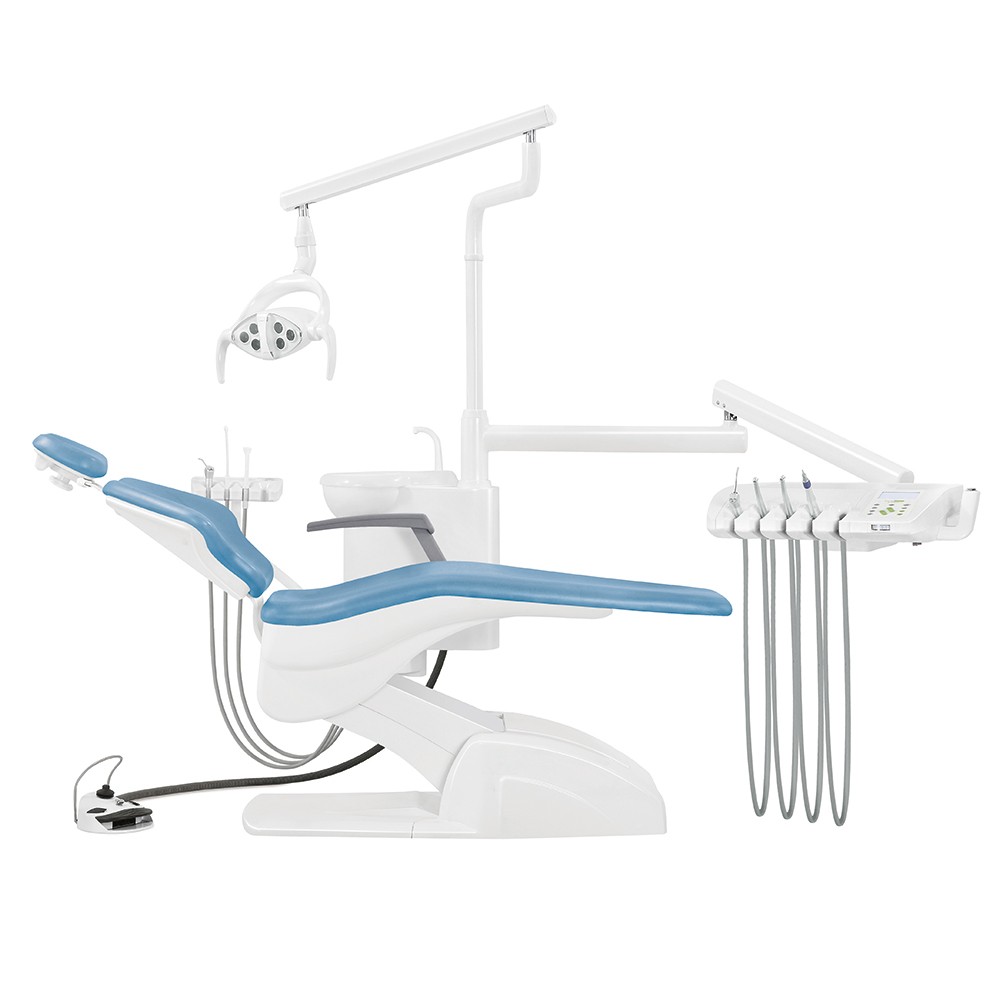

 Dental Unit Chair with Good Price

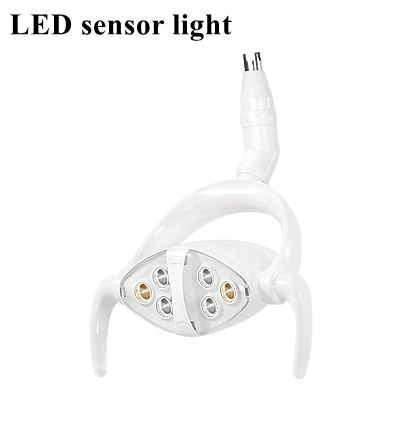

1. LED sensor light with super clear light spot and light intensity adjustable, with very flexible light arm

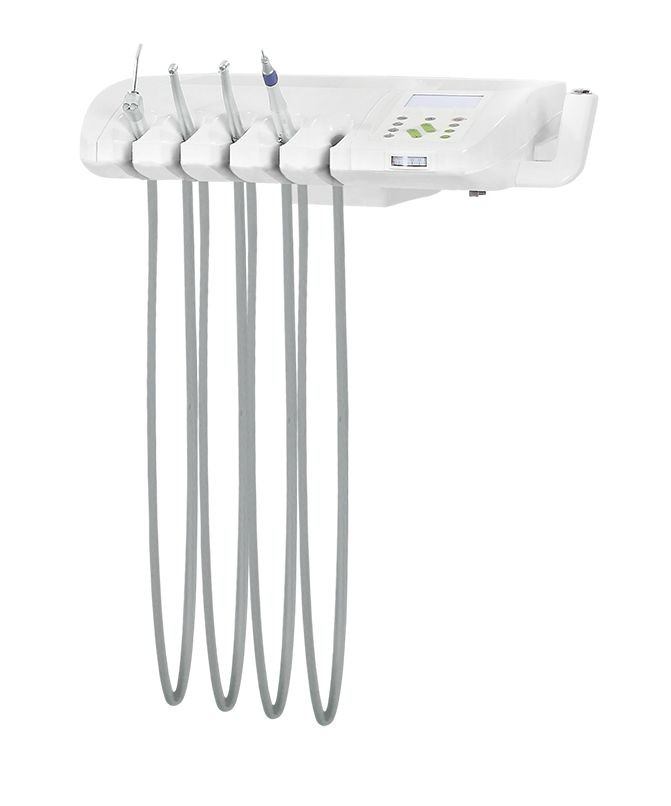

2. Well-designed hanging delivery tray, detachable & easy to clean handpiece holder

block

3. Full function control panel: spitting position setting, operation light control, x-ray film viewer control, zero position control, emergency position

4. Spitting position setting: Press the spitting position button, automatically backrest upward, bowl rinsing start, light turns off; press again, automatically return to working status, backrest backward, bowl rinsing closes, light turns on

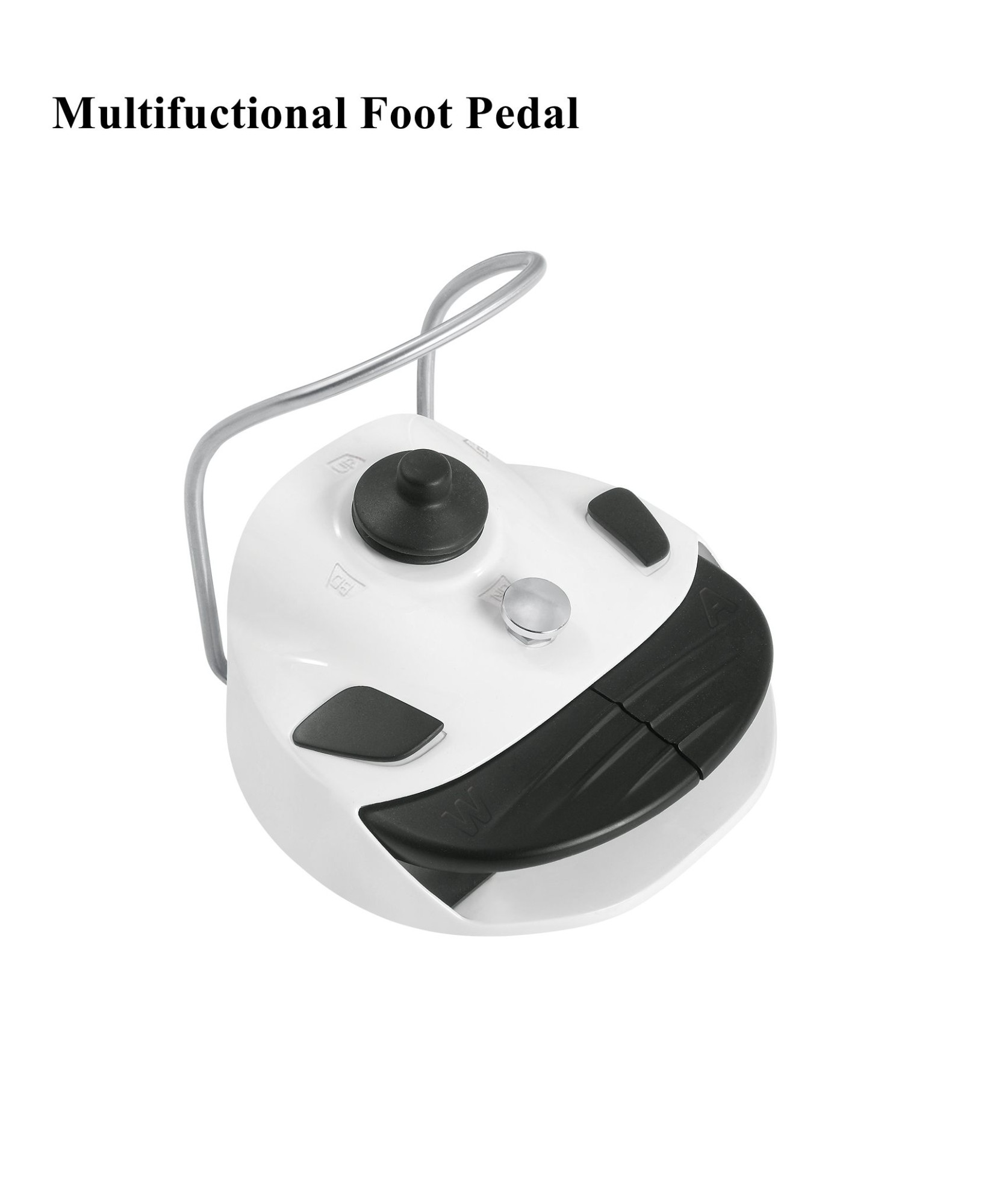

5. Multi-function foot pedal with unique fixed metal handle and fashion design, with chair position control, with bowl rinsing and cup filling control

6. High quality water and air tube and drain pipe

7. Good metal surface treatment with powder coating
