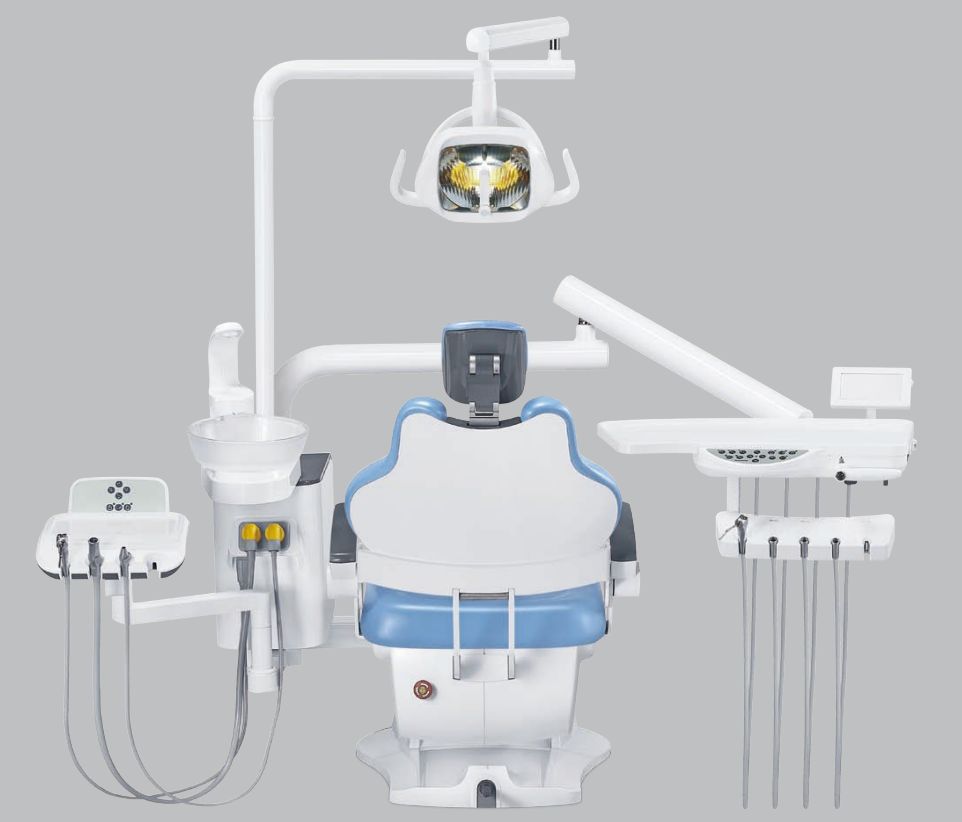

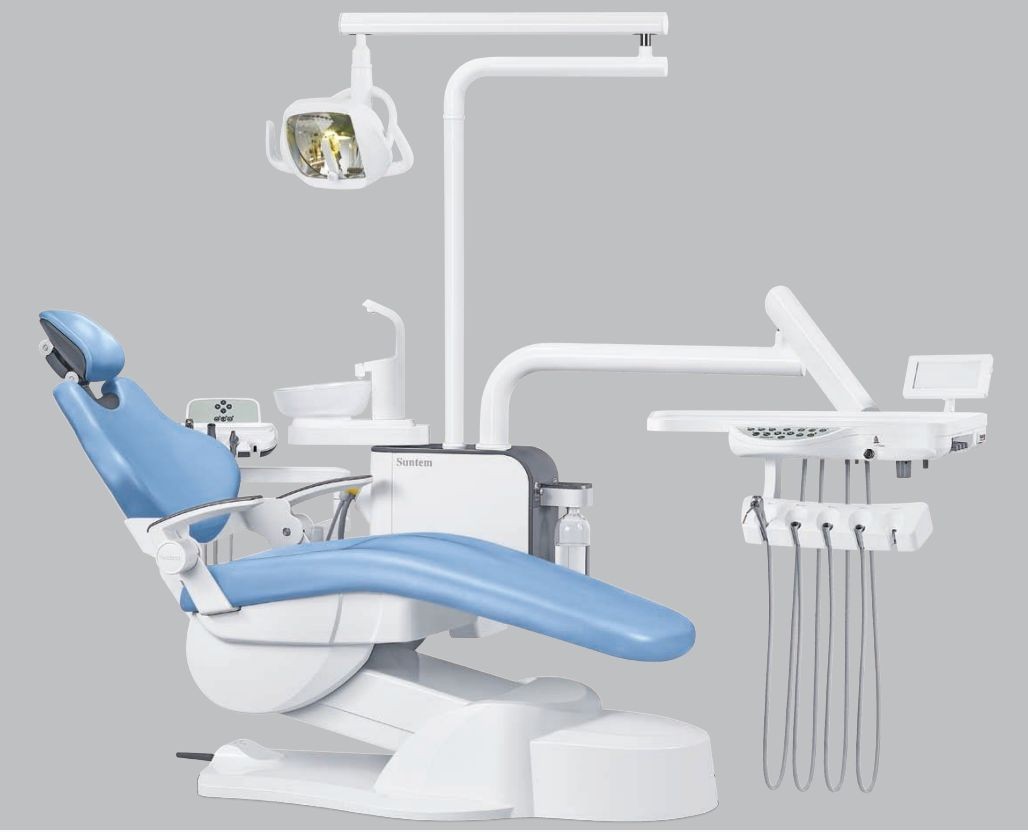

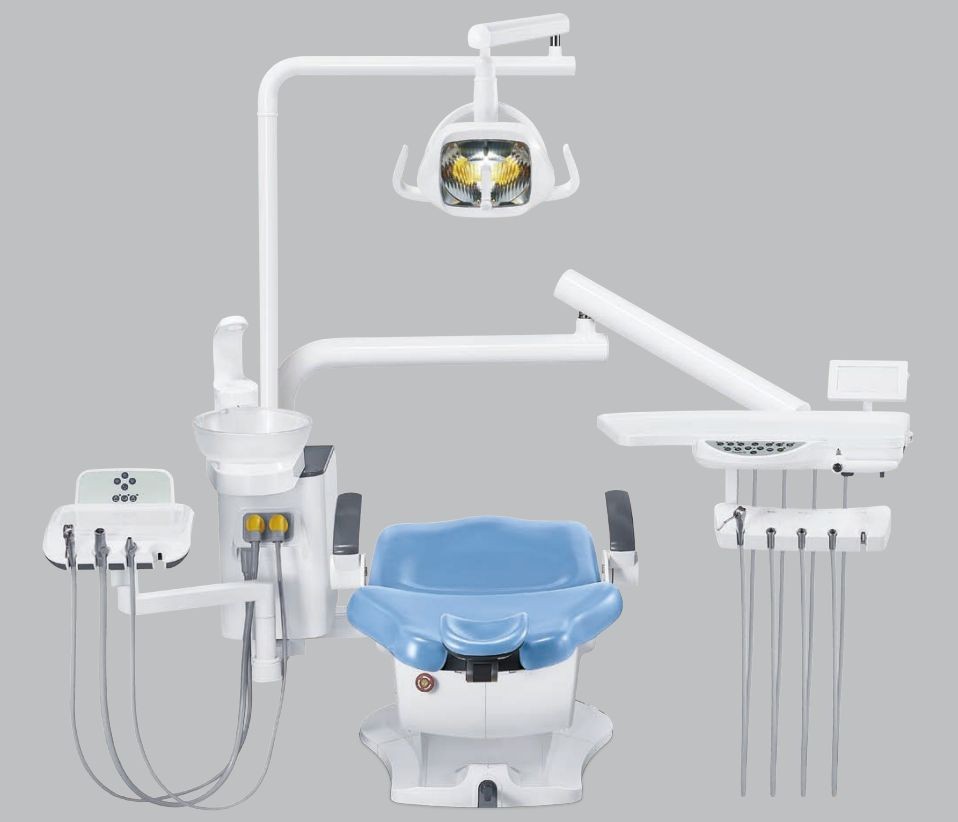

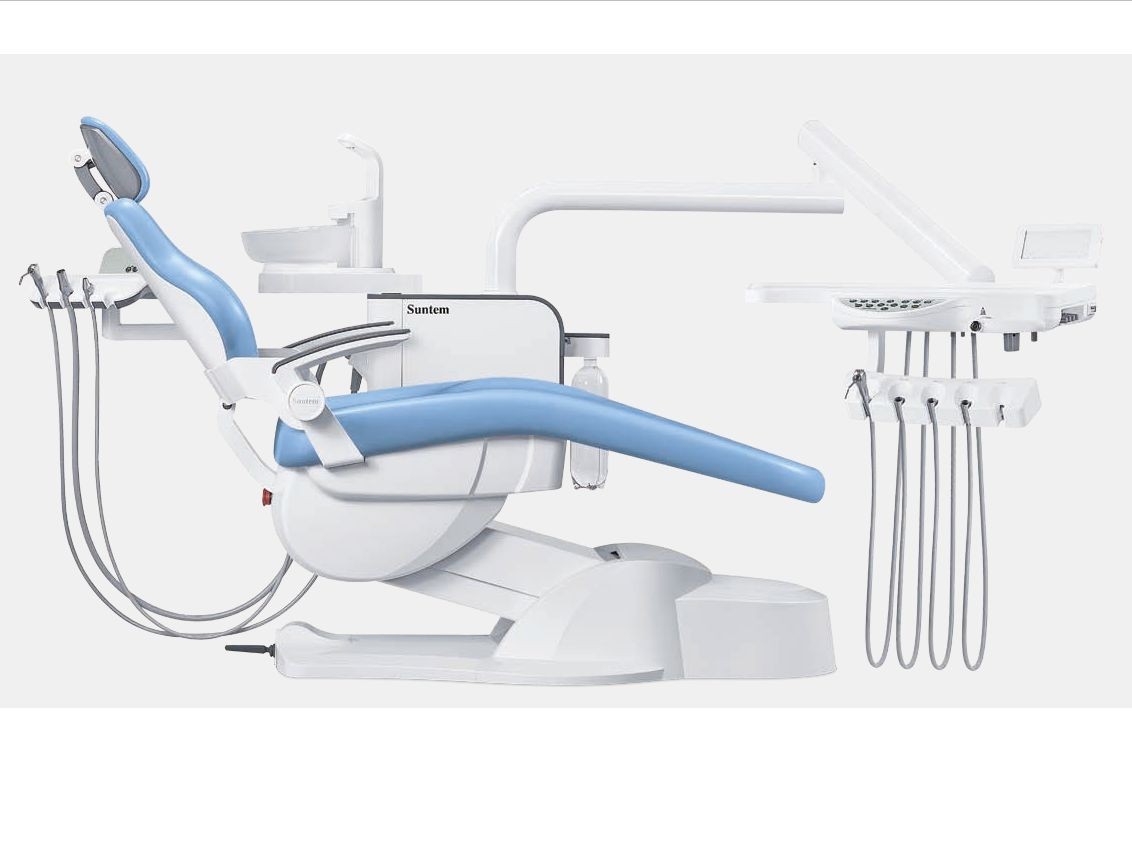

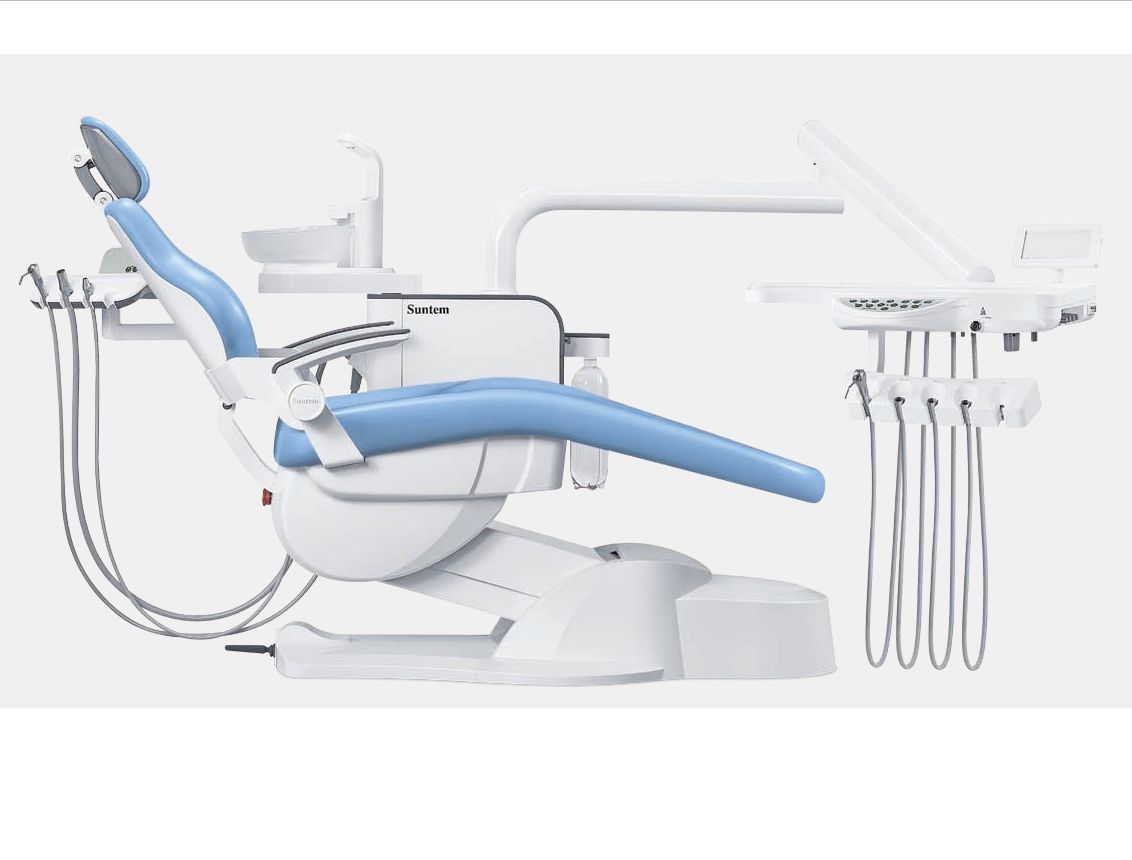

ST-D302+ Suntem dental chair unit
Configurations:
-
24V DC motor for chair (safety system)
-
Auto spittoon flushing and cup filler control system
-
3 programs inter-lock control system(Integrated circuit board)
-

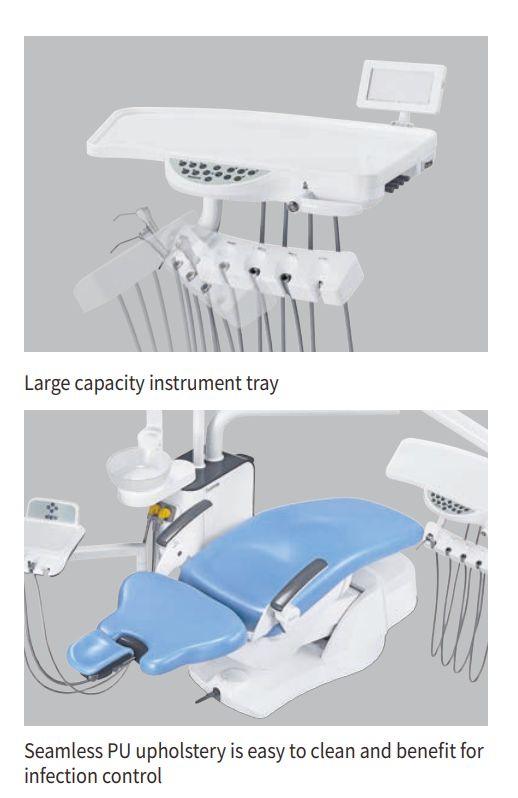

Down-mounted Instrument tray (with air break/interlock)
-
Water/air/electric master switch
-
Rotatable handpiece holder
-
Assistant system
-
Glass spittoon (rotatable/detachable)
-
Double articulate headrest
-
Seamless cushion (PU)
-
Round foot switch
-
4-way joystick (control patient chair go up/down/front/back)
-
High suction and saliva ejector system
-
Outer water tank
-
USB connector
-
LED-15 Operating Light (with sensor/composite mode)
-
LED film viewer
-
3-way syringe (hot/cold)
-
External/built-in floor box
-
ST-301 doctor stool
Options:
-
Instrument tray with air break (Top-mounted)
-
Multi-function foot switch
-
ST-603 doctor stool
-
LED-9 Operating Light (adjustable color temperature/illuminance)
-
Mobile instrument trolley (interlock)
-
Sewed eco-leather cushion
-
Automatic cup filer with sensor
-
Ceramic spittoon
-
Central suction system
Technical Specification:
Power Requirements: AC 220V, 50Hz/60Hz, 400VA, grounding
Water Requirements: pressure ≧ 0.2MPa, volumes > 10L/min
Air Requirements: pressure 0.6-0.8MPa, volumes > 80L/min
