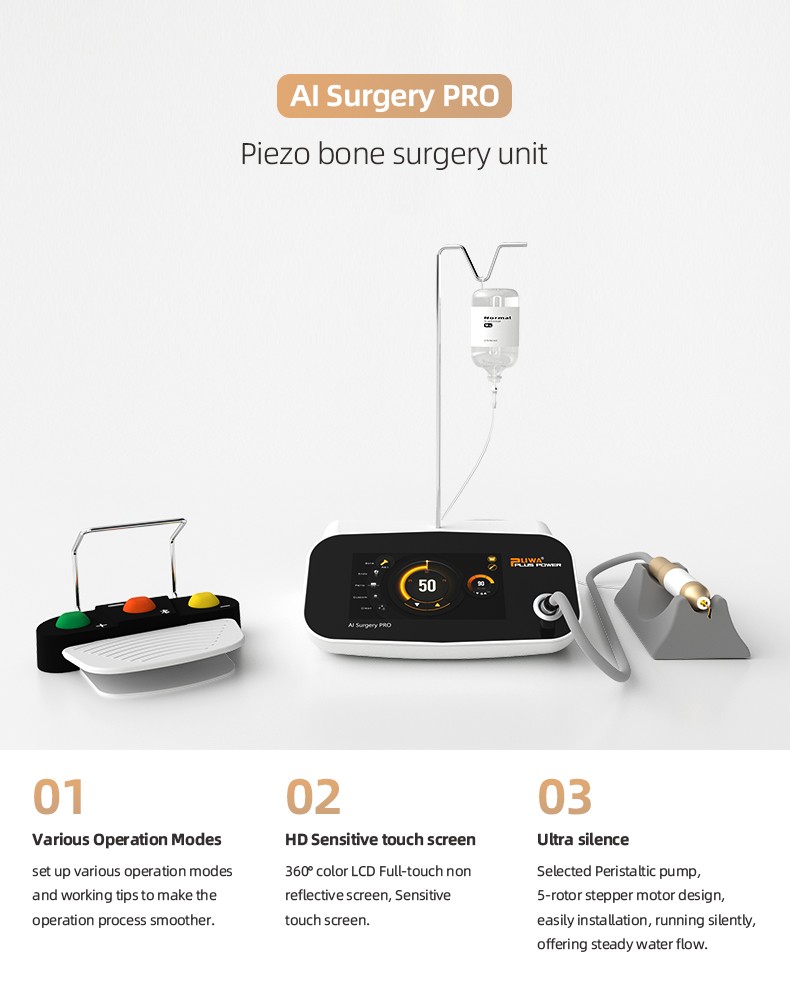

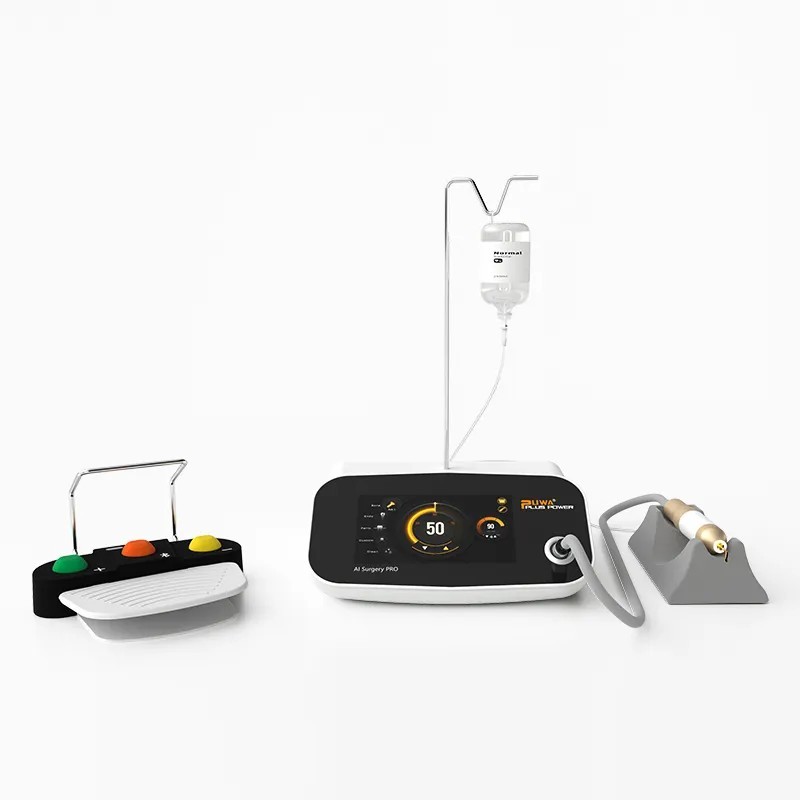

Piezo surgery provides precision, safety, ergonomics, and high-quality performance for surgeons. Our piezo surgery device can set up various operation modes and working tips to make the operation process smoother and improve the accuracy and efficiency of treatment. Our piezo surgery device has lots of unique

features:

1. effective positioning to achieve minimally invasive ;

 2. selective cutting with no damage on soft tissue;

3. five different working modes.

4. stable cutting radial amplitude is 20~200 ㎛, horizontal amplitude<30㎛.

Piezo surgery is a new system required for modern surgery and implant surgery. Ai Piezo Surgery Pro is one of the most powerful

piezoelectric surgical devices on the market. Thanks to innovative ultrasound technology, only the bone is cut with high precision, while

the surrounding soft tissue remains unharmed. For the patient, this is a clear relief: less pain and faster healing!

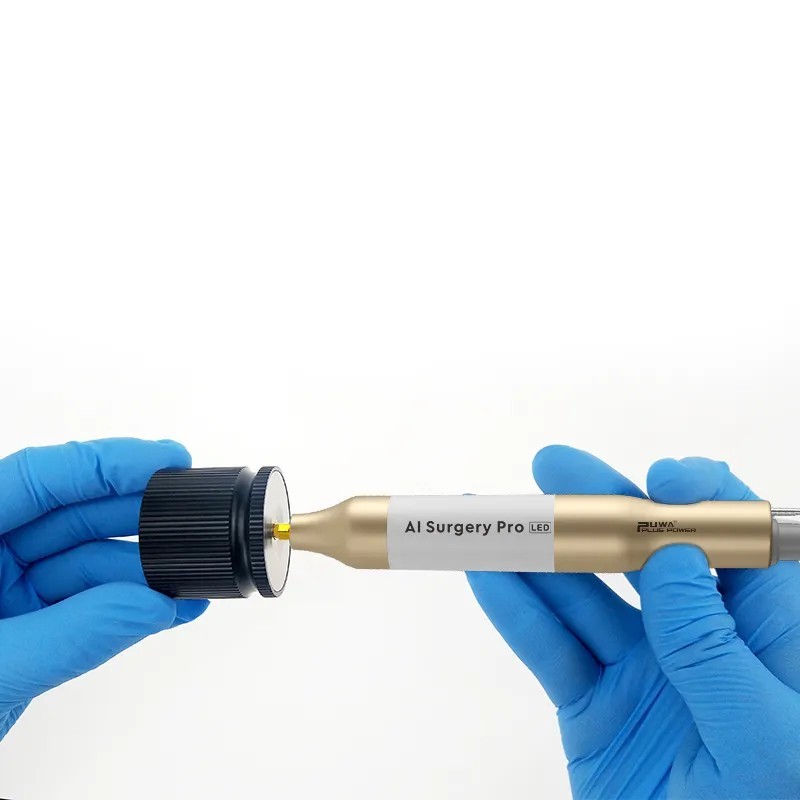

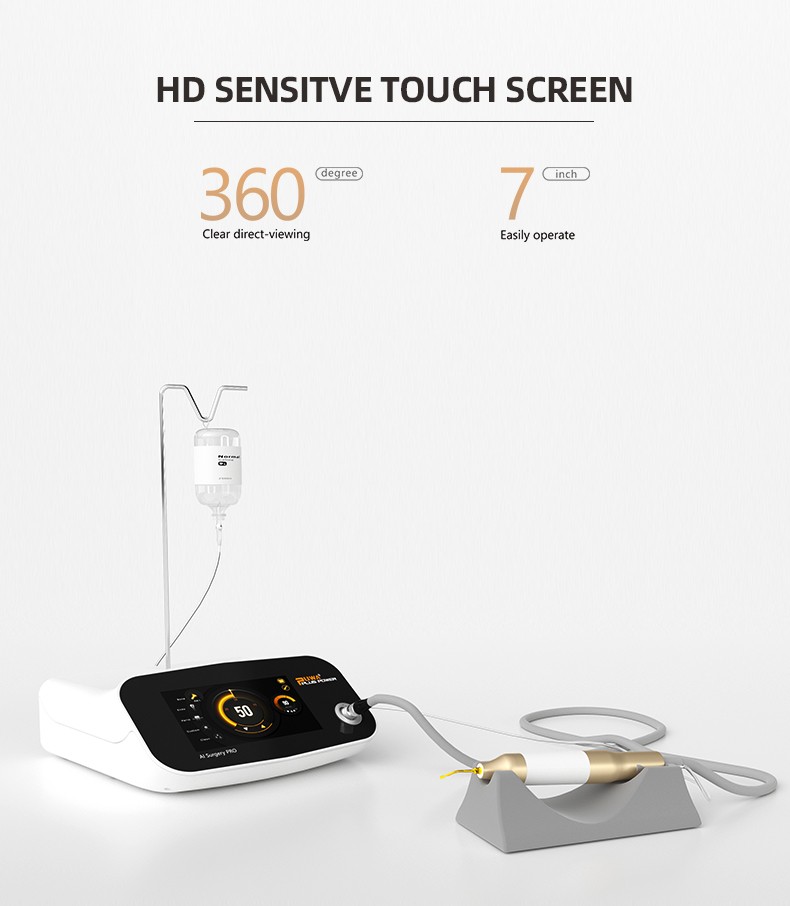

Our piezo surgery features include an exclusive 7" HD color touch screen, an intuitive user interface and less-vibration LED handpiece,

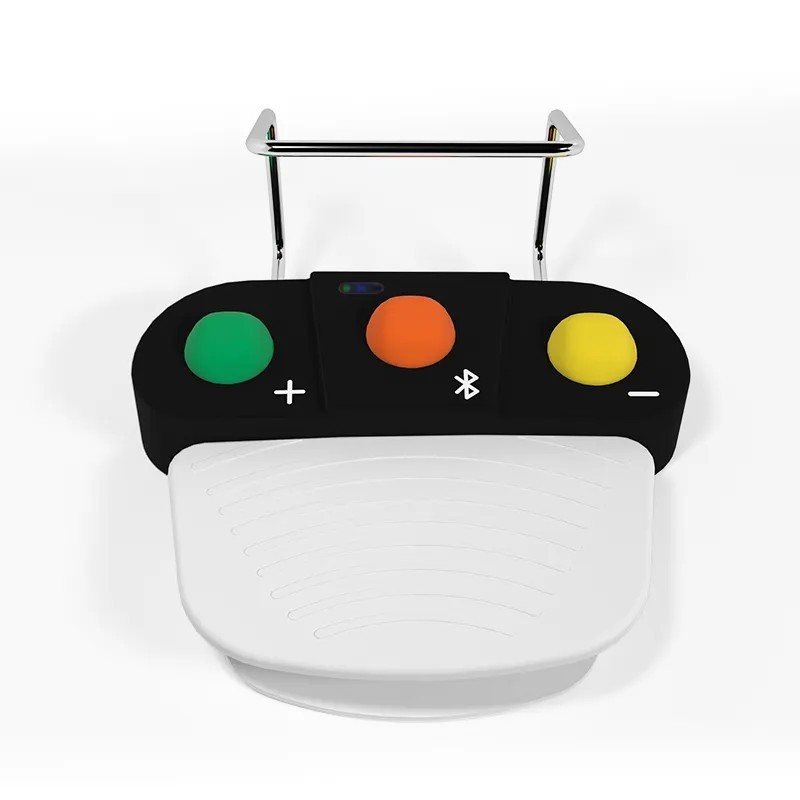

which provides for a new level of ergonomics, and a wireless bluetooth foot switch makes the aseptic operation truly realized and the

hands completely freed.

Note: It is equipped with 3 sets of surgical tips for bone surgery, endodontics and periodontal treatment.

Basic Kit:

PSK-1 High effectiveness osteotomy of large bone sections during maxillofacial surgery, it can also be used for exodontia exodontics.

PSK-2 High effectiveness osteotomy technique in maxilla and mandible(ridge expansion, corticotomy, technique, bone block grafting).

PLK-3 Diamond-coated(100µm) instrµment for micrometric osteotomy or osteoplasty: non-traµmatic to finalize the osteotomy or osteoplasty on thin bone and/or near delicate anatomic structures.

PSK-4 High efficiency bone osteoplasty: bone remodelling and harvesting of bone chips.

PSK-5 High efficiency bone osteoplasty: bone remodelling and harvesting of bone chips.

PCK-1 Used to cut off the ankylosis and root fraction techniques.

Endodontic Kit:

PEK-1 Diamond-coated(40µm) instrµment for apical root debridement: diamond-coated instrµment for efficient root planning. The length of the diamond-coated on tip is (3.3mm).

PEK-2 Used gentle canal cleaning. The length of tip slender smooth part is (4.5mm).

PEK-3 Diamond-coated(40µm) instrµment for apical root debridement: diamond-coated instrµment for efficient root planning. The length of the diamond-coated on tip is (3.6mm).

PEK-4 Used for gentle canal cleaning. The length of tip slender smooth part is(3.5mm).

PSK-4 High efficiency bone osteoplasty: bone remodelling and harvesting of bone chips.

Periodontal Kit:

PPK-2 Recommended for angled periodontal gentle curetting scaling.

PPK-4 Diamond-coated(40µm) instrµment for root debridement and root planing.

PPK-5 Recommended for root surface micro-smoothening.

PPK-7 Diamond-coated(40µm) instrµment for micro-osteoplasty; interproximal osteoplasty and root planning.

PSK-4 High efficiency bone osteoplasty: bone remodelling and harvesting of bone chips.



Features:

  1. Ai artificial positioning

  2. Selective cutting

  3. Radial amplitude: 20~200㎛

      Horiontal amplitude:<30㎛

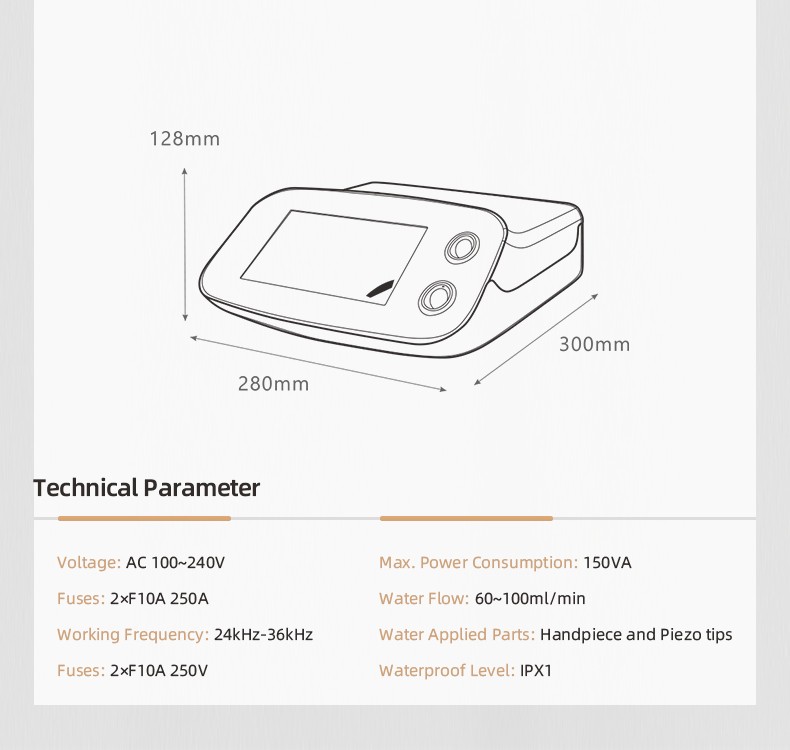

Technical Parameters:

According to EN60529	IPX1
Power-supply voltage	100~240V 50/60Hz 150VA
Fuses	2×F10A 250V
Working frequency	24kHz～36kHz
Water Flow	60~100ml/min
Water Applied parts	Handpiece and Tips
