Specifications:
Grade Class II b
Classification Type B applied part
X-ray generator
Tube voltage 60kV (Fixed)
Tube current 2mA (Fixed)
High voltage generation circuit High frequency Inverter method
X-ray control method Controlled by the micro processor
Time setting range 0.01~1.60 second (0.01 sec step)
X-ray tube
Type Stationary anode X-ray tube
X-ray tube model D-081BS (Toshiba)
X-ray tube focal size 0.8mm
Target angle 20°
Total filtration 1.6mm Al
(Inherent filtration: 0.8mmAl, Fixed added filtration: 0.8mmAl)
Display method LCD Display
SSD 100/200mm
X-ray filed 55mm (Round style)
Weight 1.8kg
Size of main body 135(W)x150(D)x175(H)mm
Voltage to use
Battery Lithium polymer battery (DC24V)
Charger JBL7451250750100FJ
(Input: 100-240V~, 50~60Hz, 1.0A, Output: DC25.2V, 0.75A)
Product description:

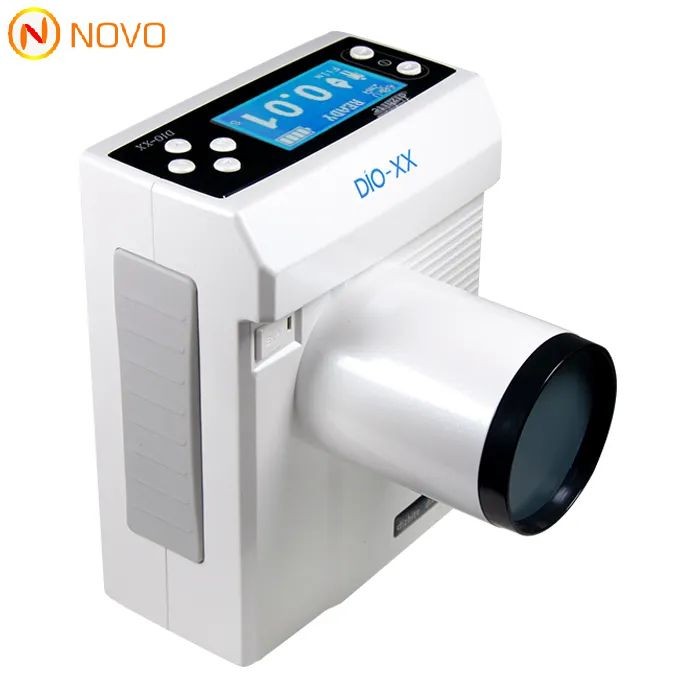

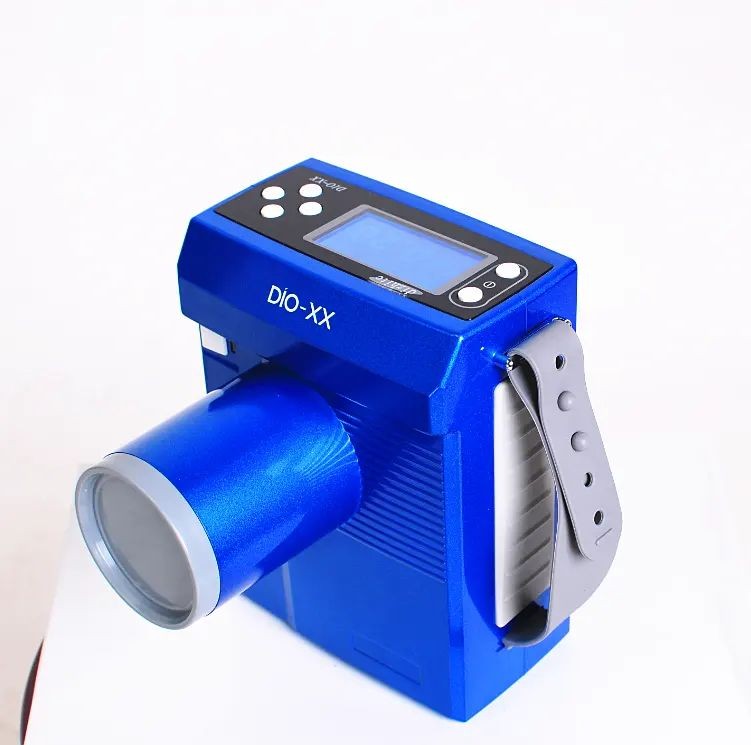

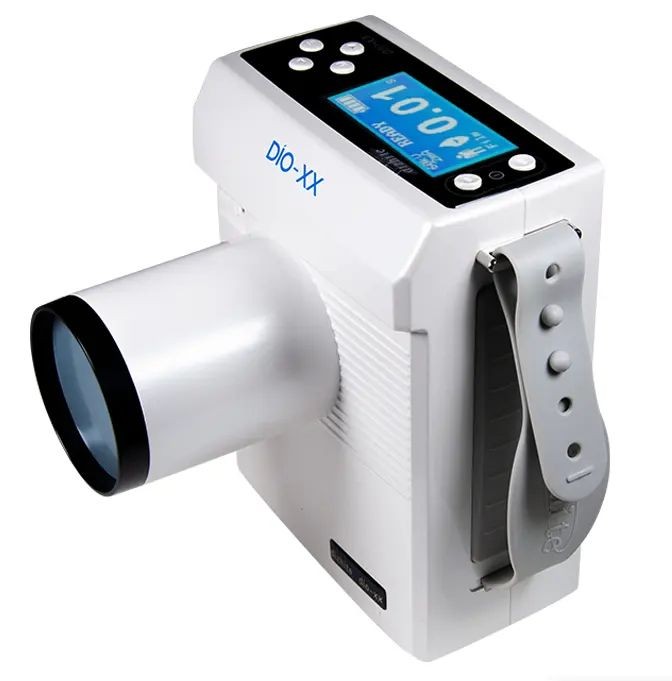

The portable X-ray system,XX is an advanced high frequency dental X-ray apparatus with fixed 60kVDC and
2mA tube current which is designed to produce diagnostic high quality X-ray for both film and digital sensors.
When X-rays are taken, the device can be either hand-held or mounted on an optional tripod or arms.
Features:
Only 3.9 pounds (1.8kg) for optimum hand-held use.
The least radiation exposure but excellent image quality.
Micro-computer and specialized circuit that monitors and precisely regulates the exposure technique factors (kV, mA and exposure time).
Simple up and down arrows adjust exposure setting by 0.01 seconds (0.01~1.60 sec.).
The X-ray generator has been newly designed to reduce the volume and weight. (Patent acquisition).
Uniquely designed internal lead shield protects the operator and the patient from dispersed radiation.
Dental clinic portable dental x-ray machine digital sensor Portable handheld dental film machine
