Woodpecker Ai Ray Portable DC Handheld X-Ray Machine is a compact & lightweight device, that ensures the safety of both dentist & patient by minimal radiation. It produces a clear, higher-quality image with a better shooting effect through an inbuilt Canon tube and a shorter exposure time. 70Kvp-3ma
Ai Ray Portable DC X-Ray Offers huge rechargeable battery enables easy & multiple shooting keeping everywhere.
This X-ray unit is compact in size and its portable nature helps you to use it in a comfortable manner. Moreover, this unit is highly ensured with safety standards owing to its minimum exposure time.
Clinical Benefits :
High efficiency for sharp radiography gives high-quality images.
Non-invasive diagnostic imaging equipment taking care of the patient’s safety to radiation exposure.
All X-rays are compatible with IOPA Film and RVG leading to the convenience of operations.
WoodPecker AI Ray Primary Technical Parameters:
Power adapter input: 100-240V 50/60Hz 1.5A
X-ray tube
Product specifications
Battery specification : 10.8V/2450~15000mAh
Internal power supply: DC 10.8V
a) X-ray tube model: D-045;
b) Focal spot: 0.4mm;
c) Target angle: 12.5°;
d) Total filtration: 1.5mmAl/70 kV-3ma
e) Additional filtration: 0.5mmAl/70 kV
Dimension: 114mm×363.8mm×245.6mm
Weight: 3.0KG -6.61lbs

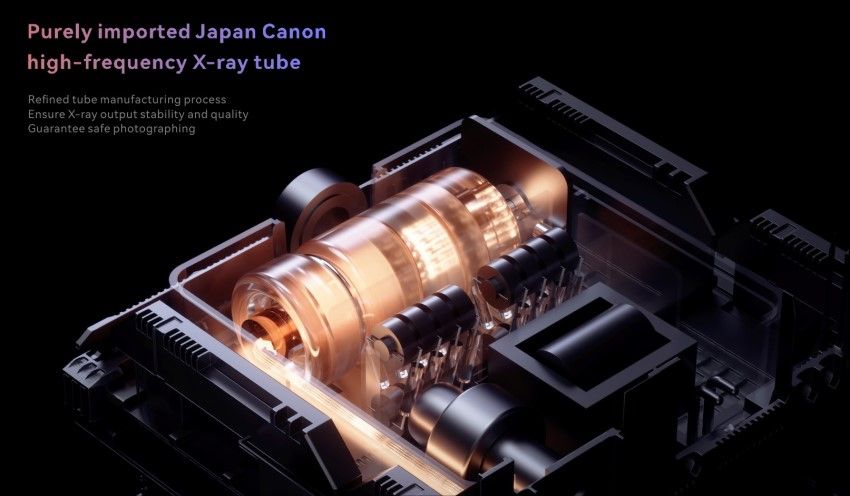

Imported Japan Canon 0.4mm High-Frequency X Ray Tube
Emission Power up to 210W Super High Performance and Efficiency
15000mAh High Capacity Lithium Battery Delivers a longer endurance, more than 1500 films can be taken under a full charge
80W Super Fast Charging assure the dental films can be taken after 5 minutes of charging.
2.8inch touch screen
FDA Aprroved, 510K #K222569
SUPER HIGH PERFORMANCE – HIGH EFFICIENCY
Emission power up to 210W- 70Kvp-3ma
Shorter exposure time with high power
Achieve stable, accurate and quick photography of different tooth positions

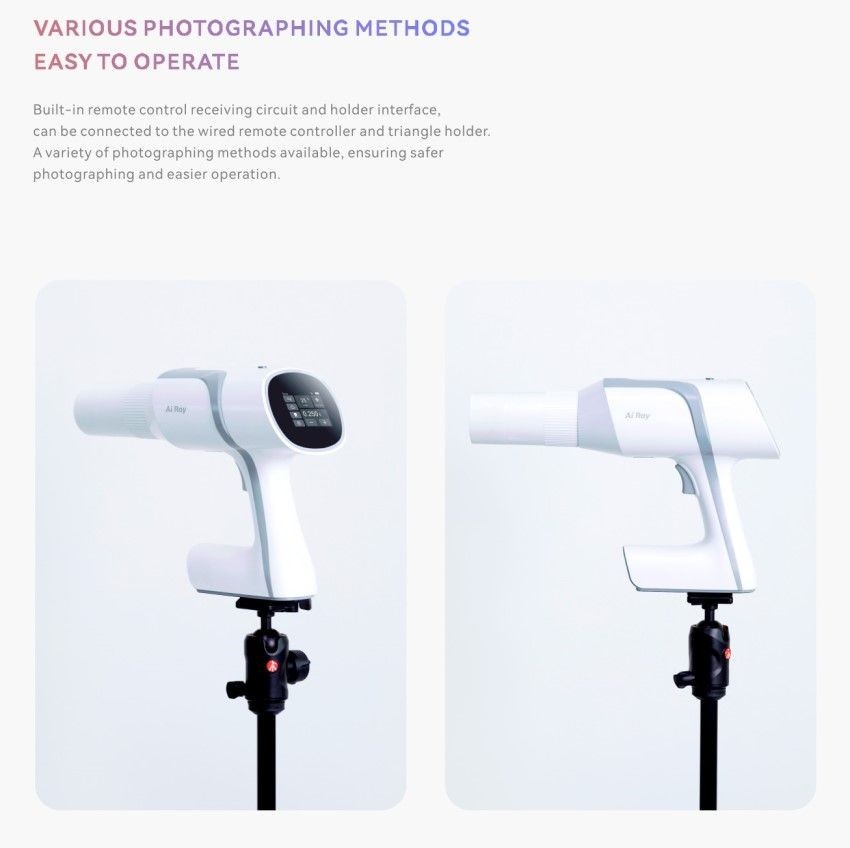

Various Photographic Methods – Easy to operate
Built-in remote control receiving circuit and holder interface, can be connected to the wired remote controller and triangle holder.
A varity of photographing methods available, ensuring safer photographing and easier operation.

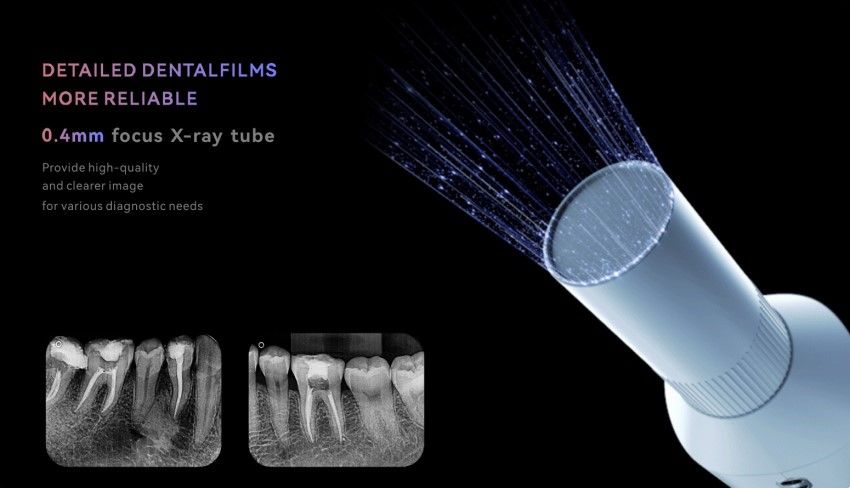

DETAILED DENTALFILMS – MORE RELIABLE
0.4mm focus X-ray tube
Provide high-quality and clearer image for various diagnostic needs
HIGH-CAPACITY BATTERY – LONGER ENDURANCE
15000mAh high-capacity power lithium battery delivers a longer endurance.
More than 1,500 dental films can be taken under a full charge.
Takes 4hrs. to fully charge
MAXIMUM EFFICIENCY AND SAFETY
Constant DC high frequency and voltage current output
Ensure that X-ray output is not affected by battery voltage fluctuations
Unique internal design and lead shield
Efficiently minimize the X-ray leakage
Maximize the protection of operators from ionizing radiation

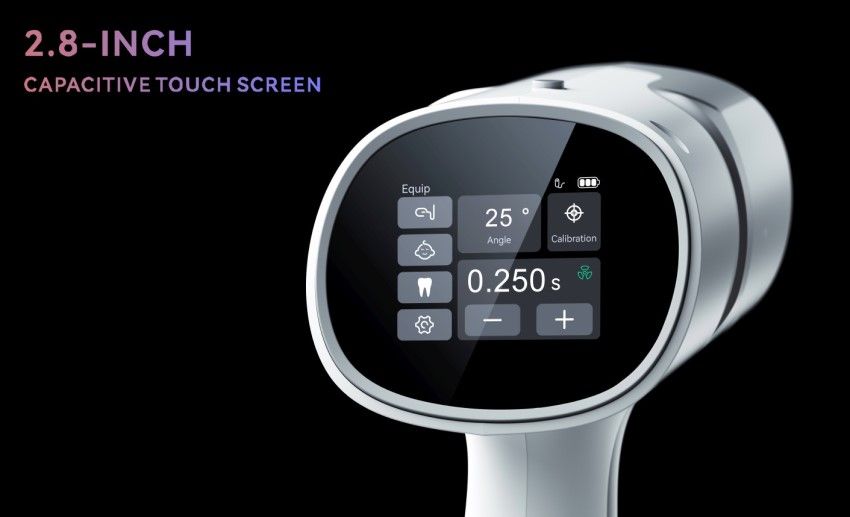

2.8 Inch capacitive touch screen
Over 110 dental X rays can be taken after 5 mins. of charge
